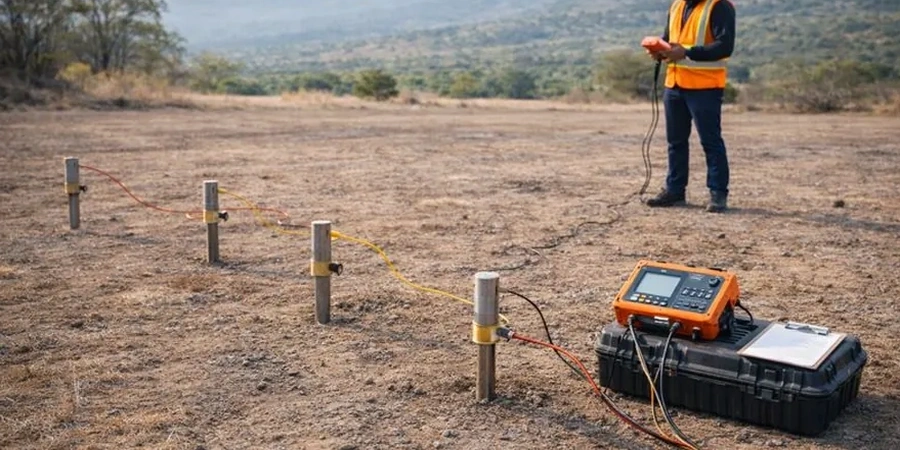

Electrical Resistivity Surveys & Vertical Electrical Sounding (VES) in Juneau, Alaska

In Juneau, where the landscape shifts from steep mountain slopes to marine clay deposits within a few hundred feet, guessing subsurface conditions is a gamble no project can afford. We've seen foundation plans stall because a hidden glacial till lens or a perched water table wasn't identified early. Electrical resistivity testing changes that. By injecting a controlled current into the ground through surface electrodes, we map how the soil and rock resist flow—a property that directly correlates to material type, moisture content, and pore fluid chemistry. The vertical electrical sounding (VES) configuration extends this profiling deep beneath a single point, which becomes vital when you need to confirm bedrock depth near the Mendenhall Valley outwash or assess sediment thickness along Gastineau Channel before specifying deep foundations or mat foundations on compressible soils. Juneau's unique geology demands data, not assumptions, and that's where our field team starts every investigation.

In Juneau's glacial terrain, resistivity contrasts often reveal what driller's logs miss—the true boundaries between till, marine clay, and fractured bedrock before excavation begins.

How we work

A recent project near the Lemon Creek area illustrates why standard boreholes alone miss critical context. The initial geotechnical plan called for driven piles based on a few SPT borings that hit refusal at 45 feet. Our resistivity survey, however, revealed a sharp drop in apparent resistivity at 28 feet on the south corner of the parcel, indicating a buried channel filled with saturated silt. This wasn't a uniform till plain—it was a paleochannel with wildly different compressibility. We configured the VES array with a maximum AB/2 spacing of 150 feet to ensure penetration beyond the planned pile tips, using a Schlumberger array for strong vertical resolution. The resulting 1D inversion model allowed the structural team to adjust pile lengths and avoid differential settlement. For broader site characterization, a 2D resistivity imaging line can be paired with seismic refraction to cross-validate bedrock velocity with resistivity contrasts, or with a MASW survey to layer shear-wave velocity profiles over the same transect, giving the geotechnical engineer a multi-parameter view of the subsurface without adding excessive borings.

Site-specific factors

Juneau sits at the intersection of active tectonics and dynamic hydrology. The 2014 M5.9 earthquake near the Fairweather Fault reminded local engineers that even moderate shaking can trigger settlement in saturated granular lenses that standard borings might label as dense till. A resistivity survey maps these lenses continuously. Ignoring low-resistivity zones during site characterization carries a specific risk: drilling into a pressurized groundwater pocket beneath a confining clay layer, causing a sudden inflow that delays excavation and requires dewatering redesign. In coastal areas near the Juneau Seawalk, saltwater intrusion further complicates the picture—high conductivity from brackish pore fluid can mimic the resistivity signature of a saturated silt, so our interpretation must integrate local water quality data and geologic mapping from the USGS Juneau quadrangle. The cost of a supplementary resistivity line is negligible compared to a shearpin failure in a pile or a retaining wall instability driven by unmodeled pore pressures.

Technical data

Parameter	Typical value
Array Configuration	Schlumberger VES, Wenner 2D
Typical AB/2 Range (VES)	3 to 200 ft (extendable to 500 ft)
Electrode Spacing (2D)	6 to 20 ft per station
Measured Parameter	Apparent resistivity (ohm-m)
Depth of Investigation	Approx. 20-25% of max array length
Data Inversion	Least-squares smoothness-constrained (1D/2D)
ASTM Reference	ASTM D6431-18
Output Deliverables	Resistivity profiles, iso-resistivity maps, interpreted geoelectric sections

Associated technical services

1D Vertical Electrical Sounding (VES)

Schlumberger array deployment with expanding electrode spacing to resolve layer resistivity and thickness. Ideal for determining depth to bedrock, mapping permafrost base, or identifying aquifer boundaries beneath a single point.

2D Electrical Resistivity Tomography (ERT)

Multi-electrode Wenner or dipole-dipole profiles along a linear transect. Generates a continuous cross-section of the subsurface, showing lateral changes in material type, fracture zones, or contaminant plumes.

Combined Geophysical Site Characterization

Integrated resistivity, seismic refraction, and MASW surveys on the same grid. We deliver a unified ground model with correlated geoelectric and seismic velocity layers, reducing uncertainty in seismic site class determination.

Time-Lapse Resistivity Monitoring

Repeated surveys over weeks or months to track changes in subsurface moisture, saline intrusion, or permafrost degradation. Used for long-term monitoring of infrastructure near the Mendenhall River or Gastineau Channel shoreline.

Relevant standards

ASTM D6431-18: Standard Guide for Using the Direct Current Resistivity Method for Subsurface Site Characterization, IBC Chapter 18 (Soils and Foundations): Site characterization requirements for Seismic Design Category D in Alaska, ASCE 7-22: Minimum Design Loads and Associated Criteria for Buildings and Other Structures (seismic site class determination via shear wave velocity correlation), ADOT&PF Geotechnical Services Manual: Guidance on geophysical methods for transportation projects in Southeast Alaska

Quick answers

What depth can a VES survey reach in Juneau's glacial soils?

With a maximum AB/2 electrode spacing of 200 feet, we typically resolve layer boundaries down to about 50-60 feet in the silty sands and gravels common in the Mendenhall Valley. Deeper penetration is possible by extending the current electrode spread, though practical limits depend on site access and surface contact resistance. For depths beyond 100 feet, we often supplement VES with a seismic refraction line to constrain the bedrock velocity interface.

How does rain or wet ground affect resistivity readings?

Juneau's frequent precipitation actually improves electrode coupling and reduces contact resistance, which is beneficial for data quality. The key interpretive step is separating lithologic resistivity contrasts from pore-water conductivity effects. Our processing workflow includes temperature correction and, when needed, a water sample conductivity measurement from a nearby monitoring well to calibrate the inversion model.

What is the typical cost range for a resistivity survey in Southeast Alaska?

For a standard VES sounding at a single location, budgets typically fall between US$560 and US$960 depending on mobilization distance within the Juneau area and the maximum depth of investigation required. A full 2D ERT line with multiple stations scales with profile length, and we provide a firm quote after reviewing the site location and project objectives.

Can resistivity testing distinguish between frozen ground and dry bedrock?

Yes, this is one of the most valuable applications in Juneau. Massive ice in frozen till or permafrost exhibits extremely high resistivity, often above 10,000 ohm-m, while dry, unfractured granodiorite bedrock typically ranges from 1,000 to 5,000 ohm-m. The contrast is clear, but we always ground-truth with at least one borehole or thermal probe to confirm the ice interpretation, particularly in transitional areas near the toe of the Juneau Icefield.
