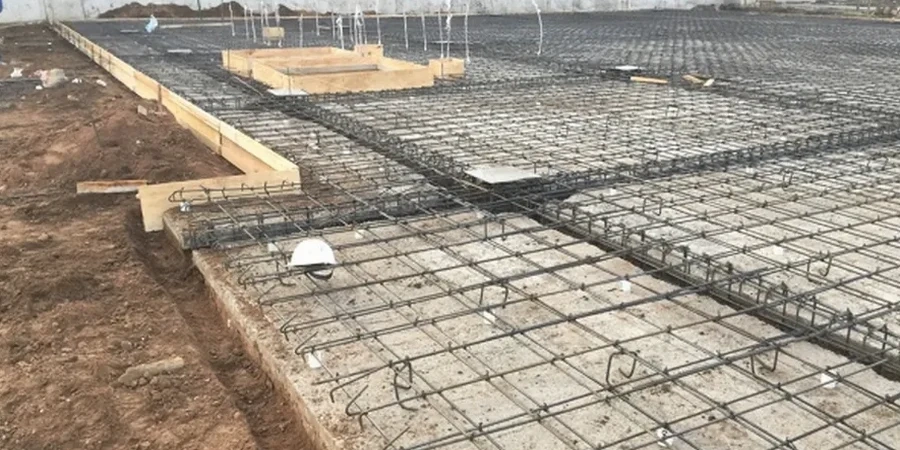

The 2024 International Building Code and ASCE 7-22 set strict bearing and settlement criteria that hit different when you are dealing with Juneau’s geology. Most buildable parcels sit on glacial till, uplifted marine clays, or colluvium draped over steep bedrock—conditions where isolated footings often cannot deliver uniform support. A rigid mat foundation spreads structural loads across a larger footprint, turning variable subsurface stiffness into manageable differential settlement. Our laboratory team runs the index and strength programs that feed every raft design: from hydrometer and Atterberg limits on clay seams to triaxial shear on saturated till, each dataset ties directly to a bearing layer verification under IBC Chapter 18. In a city that averages 230 days of precipitation a year and sits within the highest seismic hazard category in Southeast Alaska, getting the mat thickness and reinforcement layout right starts with soil parameters that are measured, not assumed.
In Juneau’s saturated glacial till, a mat foundation’s performance is decided by the soil modulus you measure, not the concrete you pour.
Site-specific factors
Juneau sits at latitude 58.3° N along a transform plate boundary, which means three things for every mat foundation: high spectral acceleration at short periods, rapid cyclic degradation of silty soils, and a real liquefaction risk in loose hydraulic fill near the Gastineau Channel waterfront. Peak ground accelerations with a 2 percent probability of exceedance in 50 years can top 0.45g, enough to trigger a bearing failure if the mat is underlain by saturated fine sand with less than 15 percent fines content. Long-term settlement is the quieter threat. Organic silt layers buried beneath Mendenhall Valley outwash continue to compress decades after construction. Without a focused consolidation program—oedometer tests on thin-walled tube samples, checked against field moisture and density—you end up with a stiff mat that tilts into a soft lens, cracking slab-on-grade partitions and jamming doors. The fix is never cheap after the fact; it is a jacking and grouting operation that disrupts occupancy.
Quick answers
How much does a mat foundation geotechnical investigation cost in Juneau?
Budget between US$950 and US$4,160 for a typical single-family or light commercial scope. Cost depends on the number of borings, access logistics—barge or helicopter support can add line items—and the laboratory tests required. A consolidation suite for one clay sample adds incremental cost, and we always recommend it when the boring log shows organic silt or soft clay deeper than 1.5 meters.
Is a mat foundation better than deep piles in Juneau’s glacial soils?
It depends on the overburden depth to bedrock and the uniformity of the till. Where bedrock is within 3 to 5 meters and the till is dense, a mat is often more economical and faster to construct than driven piles. Where the till is thin and underlain by compressible marine clay, piles may be necessary. We evaluate both options through a side-by-side cost-benefit attached to the geotechnical report.
What seismic analysis do you provide for a mat foundation?
We classify the site per ASCE 7-22 Chapter 20, compute the design spectral accelerations at short and 1-second periods, and run a simplified liquefaction screening using SPT blow counts and fines content. The report includes a seismic bearing capacity reduction factor and, when required, a kinematic soil-structure interaction assessment for the mat.
