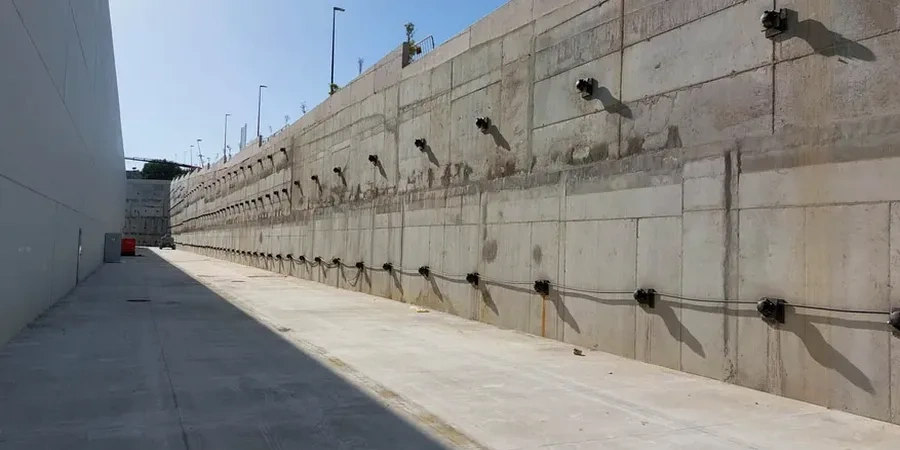

Active and Passive Anchor Design for Southeast Alaska Terrain

Drive from the compacted marine sediments of downtown Juneau out to the silty outwash of the Mendenhall Valley and the ground changes fast. One site sits on dense till with a high friction angle. The next is saturated fine-grained soil with almost no passive resistance to speak of. That contrast defines anchor design here. What works as a short bonded length in a stiff glacial deposit fails completely in softer muskeg. We see this in every project. The anchor type has to match the formation. Active and passive systems each have a place. The grain-size analysis often tips the decision. In Juneau's layered geology you need both in your toolkit.

An anchor is only as reliable as the soil's ability to sustain tension. In Juneau, that changes block by block.

How we work

The most common mistake we see is a contractor specifying a passive anchor in ground that simply cannot develop lateral stress. A grouted tieback gets installed. The wedge moves. Nothing engages. Juneau's wet silt units and organics near the surface do this reliably. A passive system needs a soil that can arch. Dense granular till. Fractured bedrock. Not saturated fine-grained material. In our experience, active anchors are far more predictable here. You lock off against a reaction block or a soldier pile wall and the load is immediate. No waiting for soil deformation. This is critical where the groundwater table sits high, which is most of downtown and the low-lying areas around Gastineau Channel. The design must also account for freeze-thaw cycling in the upper 3 to 5 feet from October through April.

Site-specific factors

In Juneau we often see groundwater perched just a few feet down, even on slopes that look dry. An anchor installed without adequate corrosion protection in that environment degrades fast. The soil is acidic from organic decomposition. The water carries dissolved oxygen. The combination eats standard steel. We also see failure from poor load distribution. A passive anchor embedded in a soft silt lens inside a larger till unit can creep. The wall moves. Cracks open. You lose the preload. The only way to catch this is with a proper site investigation that identifies every soft layer, not just the average. The Southeast Alaska climate accelerates these problems. Rain. Freeze. Thaw. Repeat.

Technical data

Parameter	Typical value
Typical bond length in glacial till	3 to 6 m
Typical bond length in fractured argillite	2 to 4 m
Design load range (active)	50 to 400 kN per anchor
Design load range (passive)	30 to 200 kN per anchor
Corrosion protection grade	Class I or II per PTI
Minimum free length	3 m
Proof load testing	133% of design load

Associated technical services

Active Tieback Design for Excavations

Prestressed grouted anchors installed in rows to support deep cuts. We design the bond zone length, free length, and lock-off load for each anchor based on the soil stratigraphy at your site.

Passive Rock Bolt and Soil Nail Systems

Untensioned or lightly tensioned elements that engage as the ground deforms. Suitable for competent till and bedrock cuts along the Egan Drive corridor and Douglas Island slopes.

Corrosion Protection Specification

Double-corrosion-protected (Class I) anchors for permanent installations in high groundwater. Encapsulated strand, corrugated sheathing, and factory-grouted tendons specified per PTI guidelines.

Proof and Performance Testing

On-site load testing to verify capacity before lock-off. We run creep tests on production anchors and log movement over time to confirm the design is holding in the actual ground conditions.

Quick answers

What does active/passive anchor design cost in Juneau?

For a typical project, design fees for active or passive anchor systems range from US$1,080 to US$3,920 depending on the number of anchor rows, the complexity of the soil profile, and the testing requirements. A small residential wall with 2 or 3 anchors falls at the lower end. A large commercial excavation with multiple rows and extensive proof testing reaches the upper range.

When is a passive anchor system preferred over an active one in Juneau?

Passive systems work well in competent ground that can develop lateral resistance with minimal deformation. Dense glacial till and fractured bedrock on Douglas Island are good candidates. They are also simpler to install. But we avoid them in soft silt or organic layers where the soil cannot arch effectively.

How do you account for seismic loads in anchor design here?

We follow ASCE 7-22 and the IBC for seismic loading. Juneau sits in a moderate seismicity zone. The design includes dynamic load cases for the retained soil mass during an earthquake. We often increase the anchor free length and specify ductile steel to handle cyclic loading without brittle failure.

How long does anchor installation and testing take?

Installation of a single anchor typically takes one day. Casing, drilling, grouting, and initial tensioning all happen in sequence. We return after the grout cures, usually 3 to 7 days later, for proof testing and final lock-off. A full excavation support system with multiple rows may take 2 to 3 weeks from start to finish.
